Solar Pump Inverter Supplier

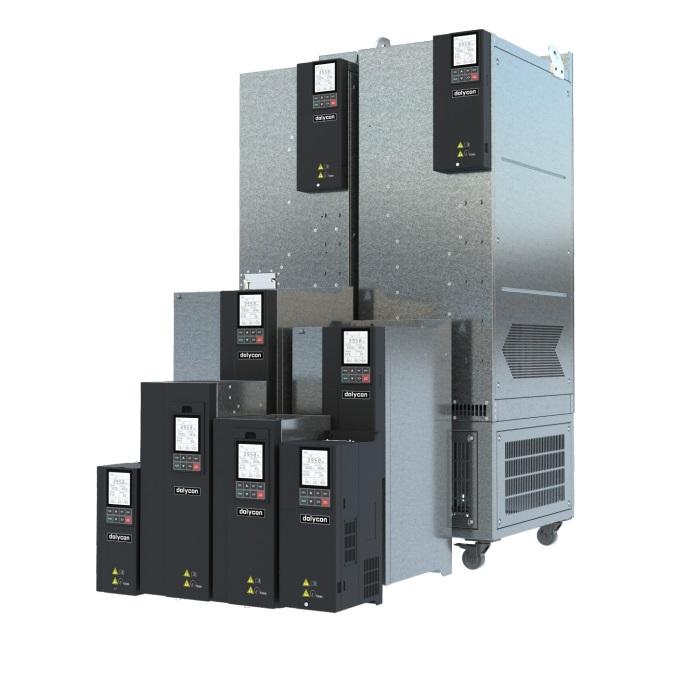

CT112S Series Single Phase / 3 Phase Solar Pump Inverter

CT112S Series solar pump inverter applied in solar pump systemcan convert DC power from solar PV array to AC power to run pump motors. Inverter controls the system operation and adjust the output frequency in real-time according to the variation of sunlight intensity to realize the maximum power point tracking (MPPT).

Product Features:

-Apply to all kinds of single phase or 3 phase AC synchronous and induction asynchronous motor.

-Equipped withTI DSP digital control technique and IGBT power integration module design.

-Maximum power point tracking (MPPT) algorithm for dynamic VI.MPPT efficiency can be 99%

-Fast response speed and good stability.

-AC and DC input available, DC and AC at the same time or not same time.

-Remote control by keypad or GPRS, support RS485 protocol.

-Automatic sleep&awake function:

1)auto sleep and awake according to the high and low water level in the tank respectively.

2)auto sleep and awake according to the weak and strong sunlight respectively.

-Full protections: overload, over-current, over-voltage, under-voltage,short circuit,dry pumping etc.

-PV reversed connection protection.

-Full series book based design,

-maximizing installation space savings;

-High definition LCD keyboard,convenient for users to debug and diagnose faults;

-The whole machine features a three-proof design and PCB coating with three proof paint to ensure product stability and reliability.

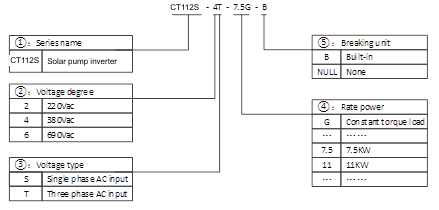

Product model name rules

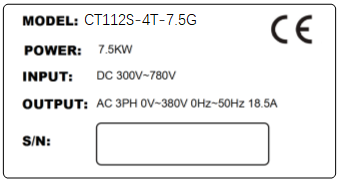

Name plate


Product specifications

CT112S Solar Pump Inverter

Model

Rated Power

(KW)

DC Input VOC Voltage(V)

Recommend

VOC Voltage

(V)

Recommend MPPT

Voltage (V)

Max.DC

Input Current (A)

Rated Output

Current(A)

Rated output

Voltage(V)

Output

Frequency

(Hz)

CT112S-2S-0.7G-B

0.75

300~450

388~450

320~370

8.5

5.5

1PH 220

0-50/60

CT112S-2S-1.5G-B

1.5

300~450

388~450

320~370

14

10

1PH 220

0-50/60

CT112S-2S-2.2G-B

2.2

300~450

388~450

320~370

23

13.8

1PH 220

0-50/60

CT112S-2S-4.0G-B

4

300~450

388~450

320~370

35

20

1 PH 220

0-50/60

CT112S-2T-0.7G-B

0.75

200~450

388~450

320~370

8.5

4.5

3PH220

0-50/60

CT112S-2T-1.5G-B

1.5

200~450

388~450

320~370

14

7.0

3PH220

0-50/60

CT112S-2T-2.2G-B

2.2

200~450

388~450

320~370

23

10

3PH220

0-50/60

CT112S-2T-4.0G-B

4

200~450

388~450

320~370

35

16

3PH220

0-50/60

CT112S-2T-5.5G-B

5.5

200~450

388~450

320~370

50

20

3PH220

0-50/60

CT112S-4T-0.7G-B

0.75

300~780

670~780

540~ 630

8.5

2.5

3PH380

0-50/60

CT112S-47-1.5G-B

1.5

300~780

670~780

540~630

8.5

3.7

3PH380

0-50/60

CT112S-4T-2.2G-B

2.2

300~780

670~780

540~630

14

5.3

3PH380

0-50/60

CT112S-4T-4.0G-B

4.0

300~780

670~780

540~630

23

9.5

3PH380

0-50/60

CT112S-4T-5.5G-B

5.5

300~780

670~780

540~ 630

23

14.0

3PH380

0-50/60

CT112S-4T-7.5G-B

7.5

300~780

670~780

540~630

35

18.5

3PH380

0-50/60

CT112S-4T-11G-B

11

300~780

670~780

540~630

35

25.0

3PH380

0-50/60

CT112S-4T-15G-B

15

300~780

670~780

540~630

50

32.0

3PH380

0-50/60

CT112S-4T-18.5G-B

18.5

300~780

670~780

540~ 630

50

38.0

3PH380

0-50/60

CT112S-4T-22G-B

22

300~780

670~780

540~630

75

45.0

3PH380

0-50/60

CT112S-4T-30G-B

30

300~780

670~780

540~630

75

60.0

3PH380

0-50/60

CT112S-4T-37G-B

37

300~780

670~780

540~630

100

75.0

3PH380

0-50/60

CT112S-4T-45G

45

300~780

670~780

540~ 630

100

92.0

3PH380

0-50/60

CT112S-4T-55G

55

300~780

670~780

540~630

150

115.0

3PH380

0-50/60

CT112S-4T-75G

75

300~780

670~780

540~630

225

150.0

3PH380

0-50/60

CT112S-4T-90G

90

300~780

670~780

540~630

300

180.0

3PH380

0-50/60

CT112S-4T-110G

110

300~780

670~780

540~ 630

375

215.0

3PH380

0-50/60

CT112S-4T-132G

132

300~780

670~780

540~630

450

260.0

3PH380

0-50/60


Technical parameters

Mode

CT112S-2S-0.4G~4.0G

CT112S-2T-0.7G~5.5G

CT112S-4T-0.7G~132G

Input specification

PV input

Maximum Input PV Voltage

450VDC

450VDC

780VDC

(PV Open-Circuit Voltage)

Recommended MPPT Voltage Range

320~370VDC(Vmp)

320~370VDC(Vmp)

540~630VDC(Vmp)

Recommended Input Operation Voltage

388~450VDC (VOC)

388~450VDC (VOC)

670~780VDC (VOC)

Grid or backup generator input

Input voltage

1PH  220V(-15%~30%)

1PH &3PH 220V(-15%~30%)

Three phase 380VAC(-15%~30%)

Output specification

Rated output voltage

1PH 220V

1PH &3PH 220V

3PH 380VAC

Output frequency

0~600.00Hz(default: 0~60.00Hz)

0~600.00Hz(default: 0~60.00Hz)

0~600.00Hz(Default 0~60.00Hz)

Protection

Built-in Protection:Lighting Protection, over-current, over-voltage, output phase-lose, under-load, under-voltage, short circuit, overheating, water pump run dry etc.

General Parameters

Application Site

No direct sunshine, no dust, corrosive gas, combustible gas, oil mist, steam, dripping or salinity etc.

Altitude

0~2000m,derated use above 1000m,per100m, the rated output current decrease 1%.

Environment Temperature

-10℃~50℃ (Environment Temperature be 40℃~50℃, please keep derated use.)

Humidity

5~95%,non-condensation

Vibration

less than 5.9 m/s2(0.6g)

Storage Temperature

-20℃~+70℃

Efficiency

Rated Power Run≥93%

Installation

Wall or rail mounting

Cooling

Forced Air Cooling

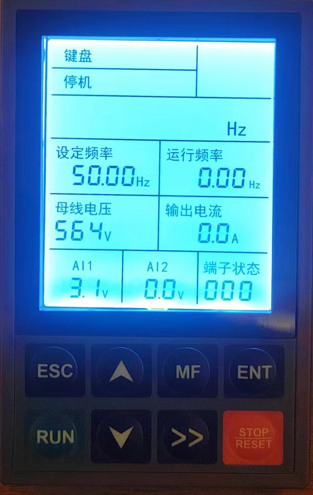

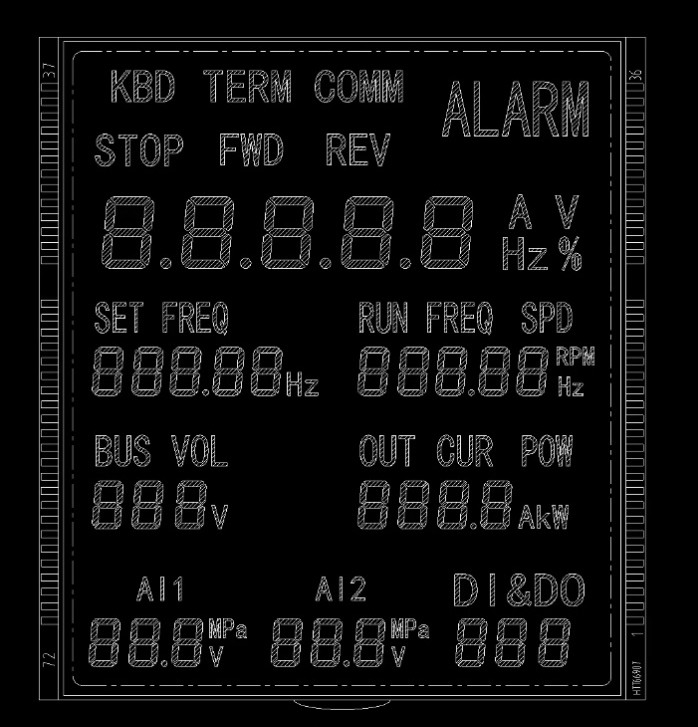

Segment code LCD screen description

3 Phase Solar Pump Inverter3 Phase Solar Pump Inverter



Unit and status display

Symbol

Name

meaning

Display area

KBD/TERM

/COMM

---

Show control inverter by keyboard or terminal or communication

STOP/FWD/REV

---

Show the inverter in which kind state

ALARM

---

Light off means no fault. It is light on to show fault code, pls refer to manual

SET FREQ

Hz

It shows current setting frequency, unit is Hz

RUN FREQ / SPD

Hz/RPM

Running frequency and speed display

Users choose to display one of them

BUS VOL

V

It shows the current bus voltage, unit is V.

OUT CUR / POW

A/Kw

Output current and power display;Users choose to display one of them.

AI1

V/MPa

AI1 and AI2 display.It is current analog input state, display as userchoose, unit is V or MPa.



AI2

V/Mpa

DI&DO

---

Terminal state display,DI1-DI7 and HDI input status is determined by the XX field on the right.DI1~DI7 are displayed in decimal system. Relay output 1, relay output 2, and DO status output are displayed by the X field on the left, controlled by 4 bits, and converted to hexadecimal display


Functions of buttons

Button

Name

Function



Programming/ Exit key

Enter or exit the 1st level menu;

Return to the 1st level menu from the 2nd level menu;

Return to the 2nd level menu from the 3rd level menu.



Multi-function key

Operate according to multi-function selection [2]

Run key

In the keypad run command reference mode, the key is used for start control of the inverter.

After setting the parameter self-identification, the key is used to start the inverter for parameter self-identification.



Enter key

After function group confirmation of the 1st level menu, enter the 2nd level menu;

After function group confirmation of the 2nd level menu, enter the 3rd level menu;

After function parameters setting confirmation of the 3rd level menu, return to the 2nd level menu;

In password verification state, the password input is completed.

Right-shift key

Function group edit step [1] selection in the 1st/2nd level menu;

Function parameters settings edit step selection in the 3rd level menu;

In stop parameter display status, running parameter display status and fault display state, display parameters selection;

Edit bit selection in password verification state.

Stop/Reset key

In keypad run command reference mode, the key is used for stop control of the inverter;

In other run command reference modes, the key is used for stop protection of the inverter [3];

At fault or stop state, the key is used as a reset key to clear the fault alarm information.



UP key

Increase function group in the 1st/2nd level menu progressively;

Increase function parameters settings in the 3rd level menu progressively;

Increase the set frequency progressively.



DOWN key

Decrease function group in the 1st/2nd level menu progressively;

Decrease function parameters settings in the 3rd level menu progressively;

Decrease the set frequency progressively.



Potentiometer

Adjust the frequency;

Adjust the torque.

Note: 1.  Select the edit step to be ones, tens or hundreds via the right-shift key.

2.  See function code (F05.04) for multi-function selection.

3.  After sending a stop command, you need to run the clear command in the current run command reference

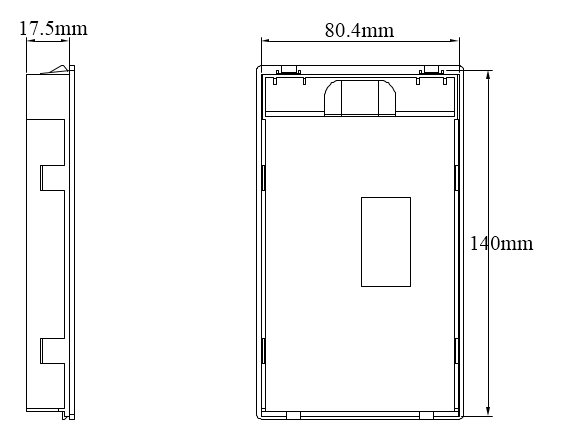

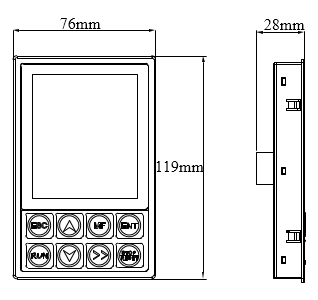

Structure diagram of the keypad (unit: mm)

Solar Pump Inverter

Solar Pump Inverter


Instructions of Main Circuit Terminals of Inverter:

Terminal

Description

R、S、T

Terminals of 3 phase AC input

(+)、(-)

Terminals of 2 phase DC input

(+)、PB

Spare terminals of external braking resistor

P1、(+)

Spare terminals of external DC reactor

(-)

Terminal of negative DC bus

U、V、W

Terminals of 3 phase AC output

Terminal of ground



Control board terminal


Control terminal function table


Category

Terminal name

Terminal function

Technical specification

Switch input

+24V

+24V power supply

24V±10%, internal isolation from GND.  max. load 200mA



PW

External power input terminal (power supply of digital input terminal)

Short circuit with +24V by default



DI1~DI7

Switch input terminals 1~7

Input specifications: 24V, 5mA



HDI

High speed pulse input or switch input

Pulse input frequency range: 0~50kHz

High level voltage: 24V



COM

+24V power supply or external power ground

Internal isolation from GND

Switch output

DO

Open collector output, common CME terminal

External voltage range: 0~24V



HDO

High speed pulse output or open collector output, common COM terminal

Pulse output frequency range: 0~50kHz



COM

HDO common terminal

Internal isolation from GND

Analog input

+10V/5V

The local supplies +10V or 5V power output

Output voltage: 10V or 5V available via X13, optional

Output current range: 0~50mA

(If the potentiometer is connected between +10V /5V and GND, the resistance should not be less than 2kΩ.)



AI1/AI2

Analog input terminal 1

Input voltage and current are optional

Input voltage range: 0~10V

Input current range: 0/4~20mA



GND

Analog ground

Internal isolation from COM

Analog output

AO1/AO2

Analog output terminal

Output voltage and current are optional

Output voltage range: 0~10V

Output current range: 0/4~20mA



GND

Analog ground

Internal isolation from COM

Relay output

T1A/TIB/TIC

Relay output

T1A-T1B: normally closed

T1A-T1C: normally open

Contact capacity: 250VAC/3A, 30VDC/1A



T2A/T2B/T2C

Relay output

T2A-T2B: normally closed

T2C: normally open

Contact capacity: 250VAC/3A, 30VDC/1A

Communication interface

485+/485-

RS485 communication interface

RS485 communication interface

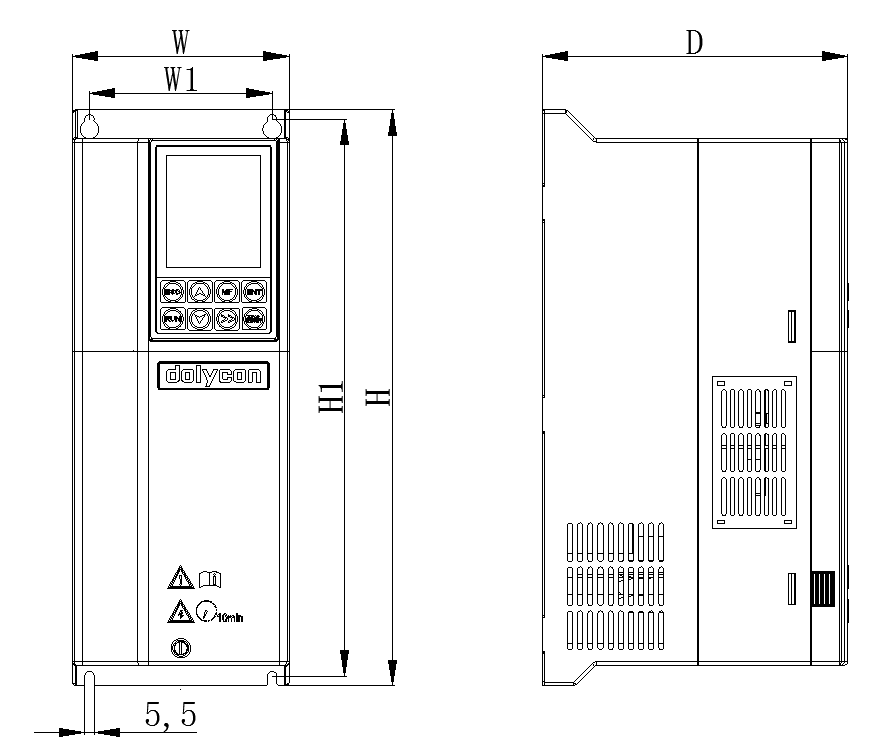

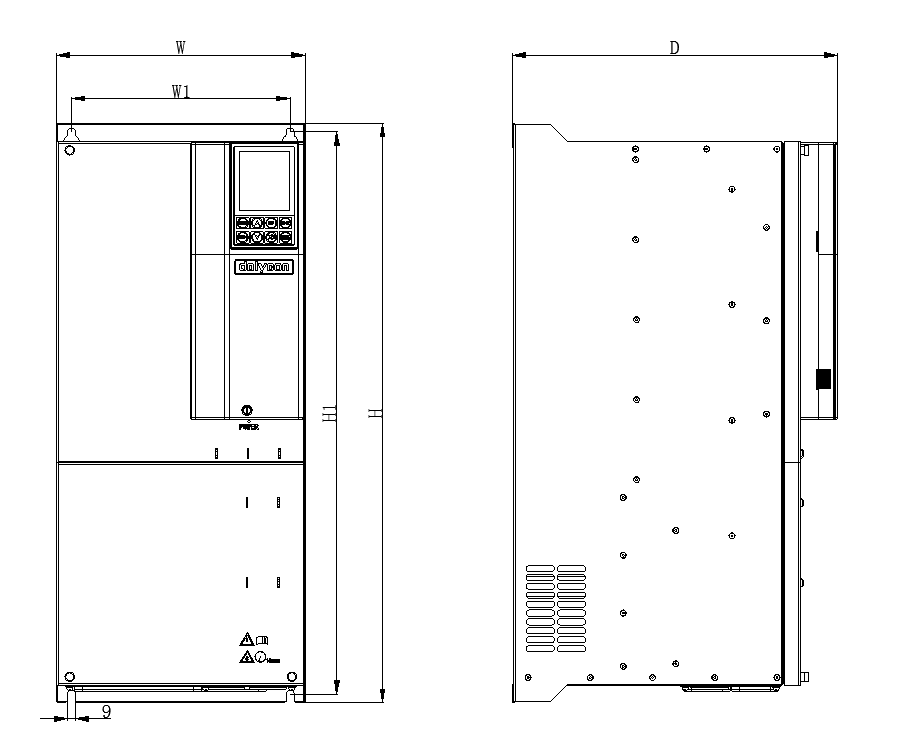

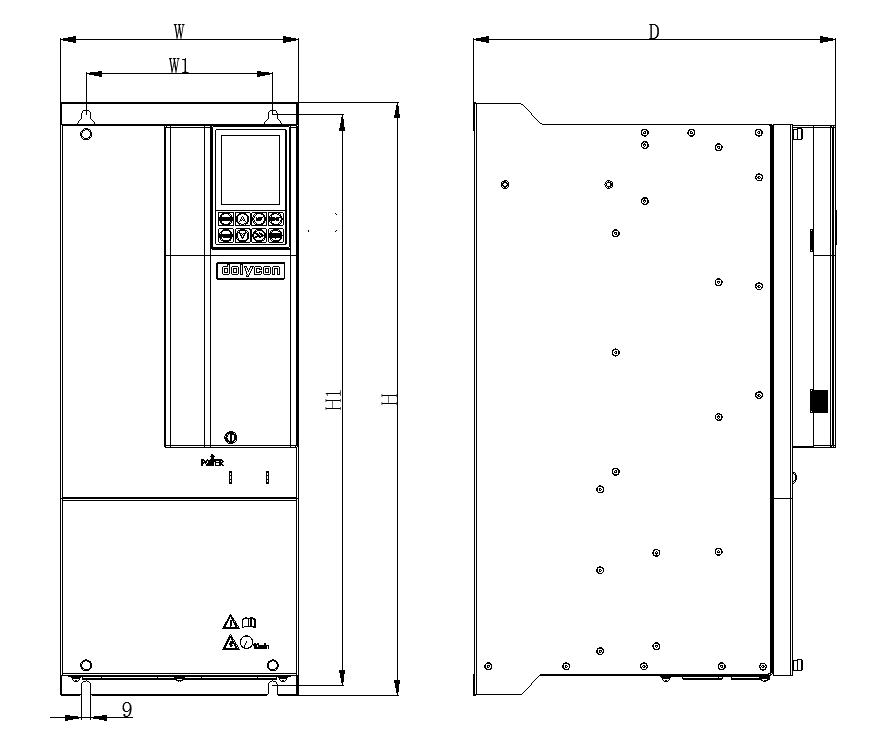

Product outline and installation size, weight

Solar Pump Inverter

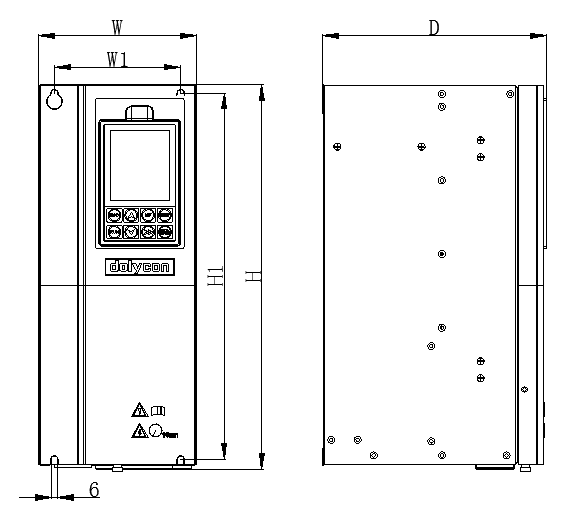

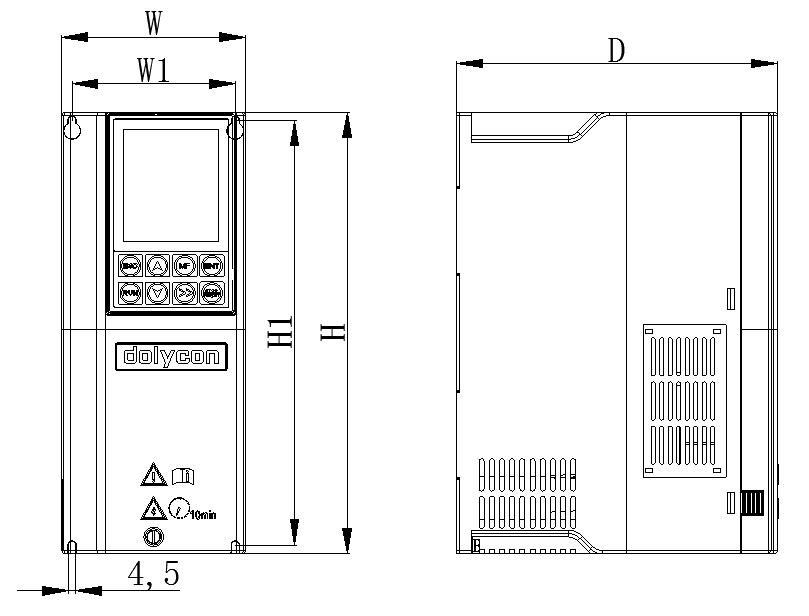

a)  XI  models

Suitable for CT112S-4T-4.0G-B ~ CT112S-4T-7.5G-B


Solar Pump Inverter

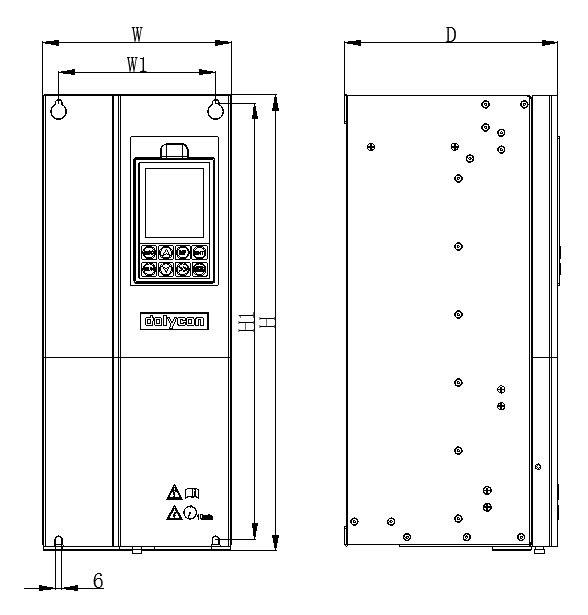

b)  X2 models

Suitable for CT112S-4T-11G-B ~ CT112S-4T-15G-B

Solar Pump Inverter


c)  X3 models

Suitable for CT112S-4T-18.5G-B ~ CT112S-4T-22G

Solar Pump Inverter


 d)  X4 models

Suitable for CT112S-4T-30G ~ CT112S-4T-37G


Solar Pump Inverter Supplier


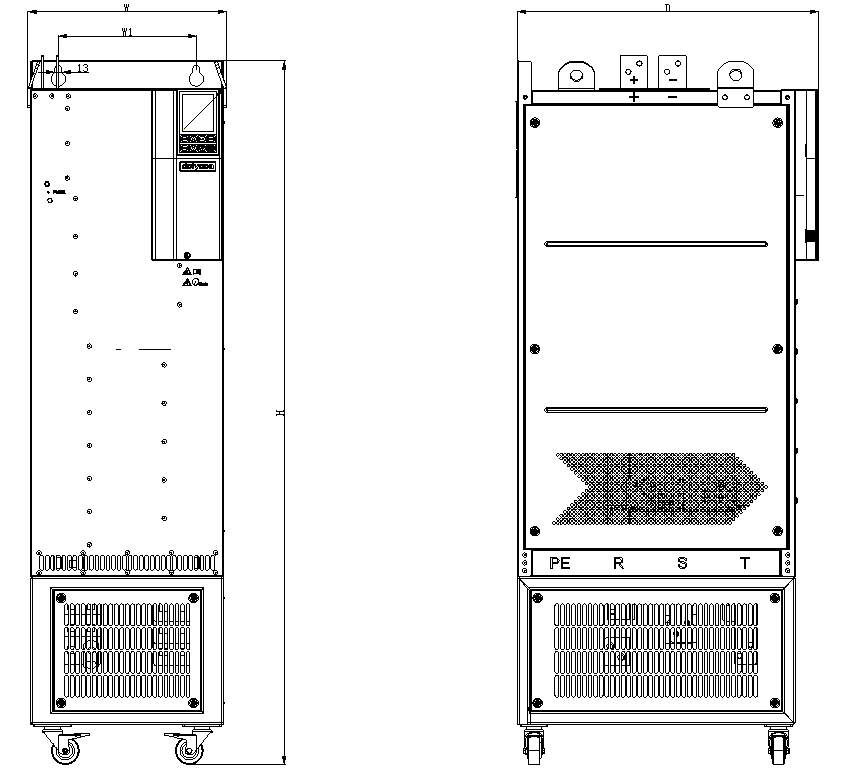

e)  X5 models

Suitable for CT112S-4T-45G ~ CT112S-4T-110G

Solar Pump Inverter Supplier


f) X6 models

Suitable for CT112S-4T-132G ~ CT112S-4T-160G

Solar Pump Inverter Supplier


g) X7models

Suitable for CT112S-4T-185G ~ CT112S-4T-280G

Solar Pump Inverter Supplier


g)  X8 models

Suitable for CT112S-4T-315G ~ CT112S-4T-400G



CT112S Structure, mounting dimension and weight

Inverter mode

Appearance and dimensions(mm)

Installing hole(mm)

Weight

(KG)

Cabinet

W

H

D

W1

W2

H1

CT112S-2S-0.7G-B

126

186

155

115

---

175

5.0

2.0

X0

CT112S-2S-1.5G-B

CT112S-2S-2.2G-B

CT112S-4T-0.7G-B

CT112S-47-1.5G-B

CT112S-4T-2.2G-B

CT112S-4T-4.0G-B

108

260

188.5

96

---

250

4.5

3.5

X1

CT112S-4T-5.5G-B

CT112S-4T-7.5G-B

CT112S-4T-11G-B

128

340

180.5

108

---

---

329

5.5

4.2

X2

CT112S-4T-15G-B

CT112S-4T-18.5G-B

150

365.5

212.5

120

---

348

6

8

X3

CT112S-4T-22G-B

CT112S-4T-30G-B

180

436

203.5

150

---

417

6

11.5

X4

CT112S-4T-37G-B

CT112S-4T-45G

230

572.5

350

180

---

550.5

9

35

X5

CT112S-4T-55G

CT112S-4T-75G

CT112S-4T-90G

CT112S-4T-110G

CT112S-4T-132G

280

652.5

366

246

---

632.5

9

45

X6

CT112S-4T-160G

CT112S-4T-185G

330

1252.5

522.5

250

---

---

11

120

X7

CT112S-4T-200G

CT112S-4T-220G

CT112S-4T-250G

CT112S-4T-280G

CT112S-4T-315G

360

1275

546.5

250

---

---

13

130

X8

CT112S-4T-355G

CT112S-4T-400G






Leave A Message
Dolycon offers an extensive support system to help customers choose the best product. We care about your business and personal needs. Get in touch today.
Related Products
  • solar water pumping inverter for irrigation,solar pump inverter
    IP54 MPPT VFD Solar Water Pump Inverter

    CT112A Solar Water Pump Inverter is based on CT112 solar pump inverter and equipped with auto-voltage boost function to satisfy operating demands of low voltage and simplify solar battery panel configuration, reducing system cost.

  • Mini variable frequency drive pump,single phase vfd drive
    Mini Solar Pump Inverter 0.75-4KW PV Pump Inverter VFD

    CT112M mini series solar pump inverter is a small power inverter converter solar panel dc to ac power, specially for AM or PMSM solar pump control.

  • single phase solar pump inverter frequency inverter,frequency converter supplier
    380v/220v 3 Phase/1 Phase Solar Pump Inverter VFD

    CT112 series solar pump inverter applied in solar pump system can convert DC power from solar PV array to AC power to run pump motors. Inverter controls the system operation and adjust the output frequency in real-time according to the variation of sunlight intensity to realize the maximum power point tracking (MPPT).

  • 7.5 kw inverter variable frequency inverter 3 hp vfd,frequency converter factory
    General Purpose Variable Frequency Drive Open Loop Vector VFD

    CT100 series general purpose VFD based on DSP control system, has high performance open loop vector control technology,achieving excellent performance and high reliability. It can be applied to asynchronous motors, providing excellent drive performance. Shenzhen Dolycon Technology Co., LTD Founded in 2015, we have been focusing on the research, development and sales of variable frequency drives and solar water pump inverters for more than 7 years. We are a national high-tech and professional manufacturer of various variable frequency drives and solar water pump inverters.

  • variable frequency inverter vfd single phase/three phase,vfd inverter
    AC Variable Frequency Drive VFD for Rotary Cutting Machine

    CT210 Frequency inverter integrates the special control logic of rotary cutting machine into itself and has integral control of rotary cutting, splitting, and splitting. It is used for the rotary cutting of wood, which has the advantages of uniform and precise thickness, accurate tail-end control, etc.

  • Food machine vfd 380V frequency inverter,variable frequency control
    Chinese Mini Vector Control VFD 0.75-4 kw AC drive

    CT120G mini frequency inverter / ac drive is a general-purpose small power inverter, it is suitable for small power motor adjusting speed. China professional frequency converter supplier & factory.

  • PMSM frequency inverter,variable speed drives
    CT100F PMSM Vector Control Inverter Universal VFD

    CT100F PMSM vector control inverter adopts original magnetic pole detection technology to realize soft-start, no reverse, or joggle, meet high requirement application.

  • Mini variable frequency drive pump,single phase vfd drive
    Mini Solar Pump Inverter 0.75-4KW PV Pump Inverter VFD

    CT112M mini series solar pump inverter is a small power inverter converter solar panel dc to ac power, specially for AM or PMSM solar pump control.

Top
Leave A Message
Leave A Message
Dolycon offers an extensive support system to help customers choose the best product. We care about your business and personal needs. Get in touch today.

Home

Products

Email

whatsapp
