IP54 MPPT VFD Solar Water Pump Inverter

CT112A Solar Water Pump Inverter is based on CT112 solar pump inverter and equipped with auto-voltage boost function to satisfy operating demands of low voltage and simplify solar battery panel configuration, reducing system cost.
  • Item NO.:

    CT112A
  • Order(MOQ):

    10
  • Type:

    Solar Pump Inverter
  • Control Mode:

    V/F
  • Rated Power:

    0.75kw to 2.2kw
  • Output Frequency:

    0-50/60HZ
  • Horsepower:

    1hp - 3hp

IP54 MPPT VFD Solar Water Pump Inverter



CT112A Solar Water Pump Inverter Power Level


CT112A-2S/2T-XXX

0.7

1.5

2.2

Rated output power(kW)

0.7

1.5

2.2

Max. DC input current(A)

9

12

12

Rated AC input current—AC type(A)

9.3

15.7

24

Rated output current(A)

4.5

10

14


Note:Output current is defined as rated value at single 220V output voltage,and output current at three phase output is counted additionally according to the power.


CT112A Solar Water Pump Inverter Specification

Mode

CT112A-2S-0.7

CT112A-2T-0.7

CT112A-2S-1.5

CT112A-2T-1.5

CT112A-2S-2.2

CT112A-2T-2.2

DC INPUT

Max. DC current(V)

450

Starting voltage(V)

80

100

Min. Operation voltage(V)

60

80

Recommended MPPT voltage(V)

80~400

100~400

Input channel

One channel:MC4

Max. DC input current(A)

9

12

Bypass AC input (model supports mains input)

Input voltage(Vac)

220/230/240(1PH)(-15%~+10%)

Input frequency(Hz)

47~63

AC input terminal

1P2L

AC output

Rated(W)

750

1500

2200

Rated current(A)

5.1(1PH)

4.2(3PH)

10.2(1PH)

7.5(3PH)

14(1PH)

10(3PH)

Output voltage(Vac)

0~input voltage

Output wiring mode

1P2L/2P3L/3P3L

Output frequency(Hz)

1~400

Control performance

Control mode

V/F

Motor type

Asynchronous motor

Other parameters

Dimension(L*W*H)(mm)

314*280*128

Protection level

IP54

Cooling mode

Natural cooling

HMI

External LED keypad

Communication terminal

External communication

RS485/3 digital inputs

Operation environment

Ambient temperature

-25℃~60℃(derate when the temperature is above 45℃)

Operation altitude

3000 m(derate when the altitude is above 2000m)

Warranty

18 months


Dimensions of CT112A Solar Water Pump Inverter

Mode

Height

H1

(mm)

Width W1

(mm)

Depth D

(mm)

Height H2

(mm)

Width W2

(mm)

Installation hole

CT112A-2S/2T-0.7

280

314

128.2

264

256

M6

CT112A-2S/2T-1.5

CT112A-2S/2T-2.2

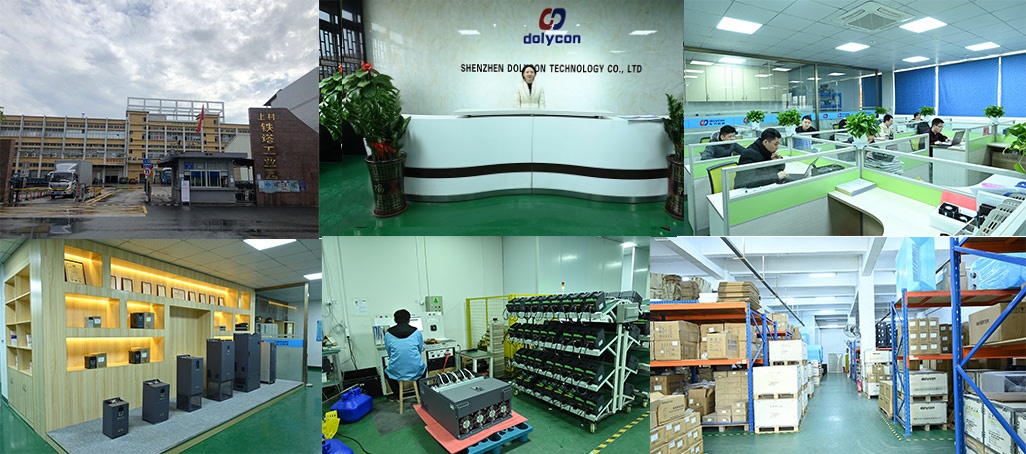

Company Display


We are a VFD & solar pump inverter manufacture, customized product is available if you have good requirement quantity for them. Samples 5-7 days, patch orders 7-20 days according to the order quantity.
